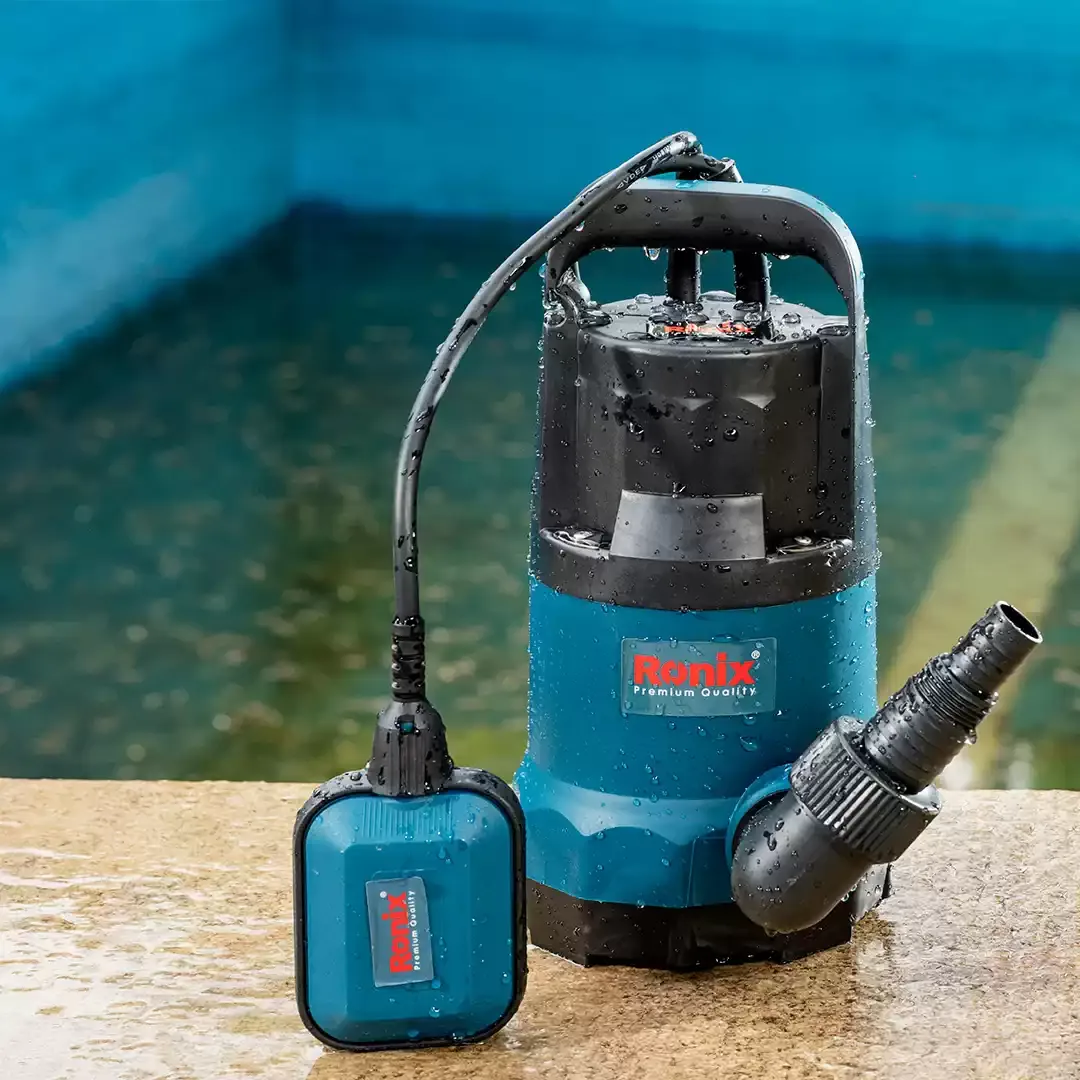

Submersible pump 1 hp

SKU: RH-4031 Brand: Ronix Category: Submersible pumps

Ronix RH-4031 is a submersible pump that offers a maximum flow of 9.5m³/h alongside a maximum pumping head of 9m.

IQD 150,000
In Stock
Nationwide delivery Cash on Delivery Official warranty
Submersible pumps are devices that are designed to be submerged in water or other liquids to pump or move the fluid from one location to another. These pumps work by using a sealed motor that drives an impeller, which in turn creates pressure that moves the liquid through the outlet port. Submersible pumps are useful in a variety of applications, including drainage of flooded areas, irrigation systems, wastewater treatment, and oil and gas drilling operations. Keeping these applications and scenarios in mind, we have equipped our RH-4031 water with a 1 horsepower strong motor that can work in a maximum water depth of 5m and rotate its impeller at a maximum speed of 2850 RPM. If you are looking for a device to help you move water from one surface to another place, Ronix RH-4031 is the one to go for.

Model RH-4031
Power 1hp
Voltage 220-240V
Frequency 50Hz
Min.Flow 0.6m³/h
Max. Flow 9.5m³/h
Min.Head 2.5m
Max. head 9m
outlet port diameter ”11/2
Speed 2850RPM
Max. liquid temperature ℃35
Max. Ambient temperature ℃40
Working Pressure 1bar
solid passage diameter 4mm
max immersion depth 5m
max dry running tim 30seconds
Protection level IP68
Insulation Class CLASS B
Pump housing material PLASTIC
Motor housing material PLASTIC
Mechanical seal material CERAMIC/GRAPHITE
Motor protection WITH THERMAL PROTECTOR
Coil winding material COPPER
Impeller material PPO
shaft material SS 304+45
Weight 4.9kg
Packaging color box
