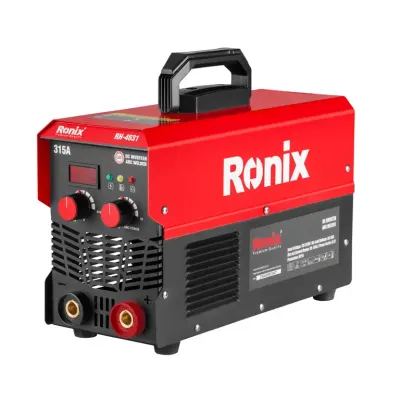

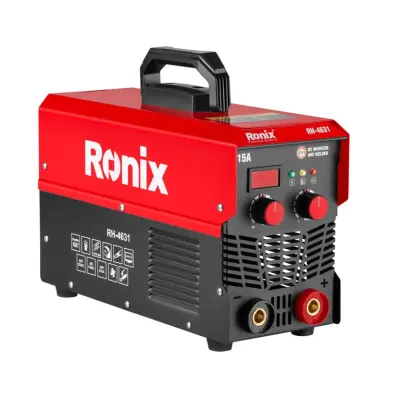

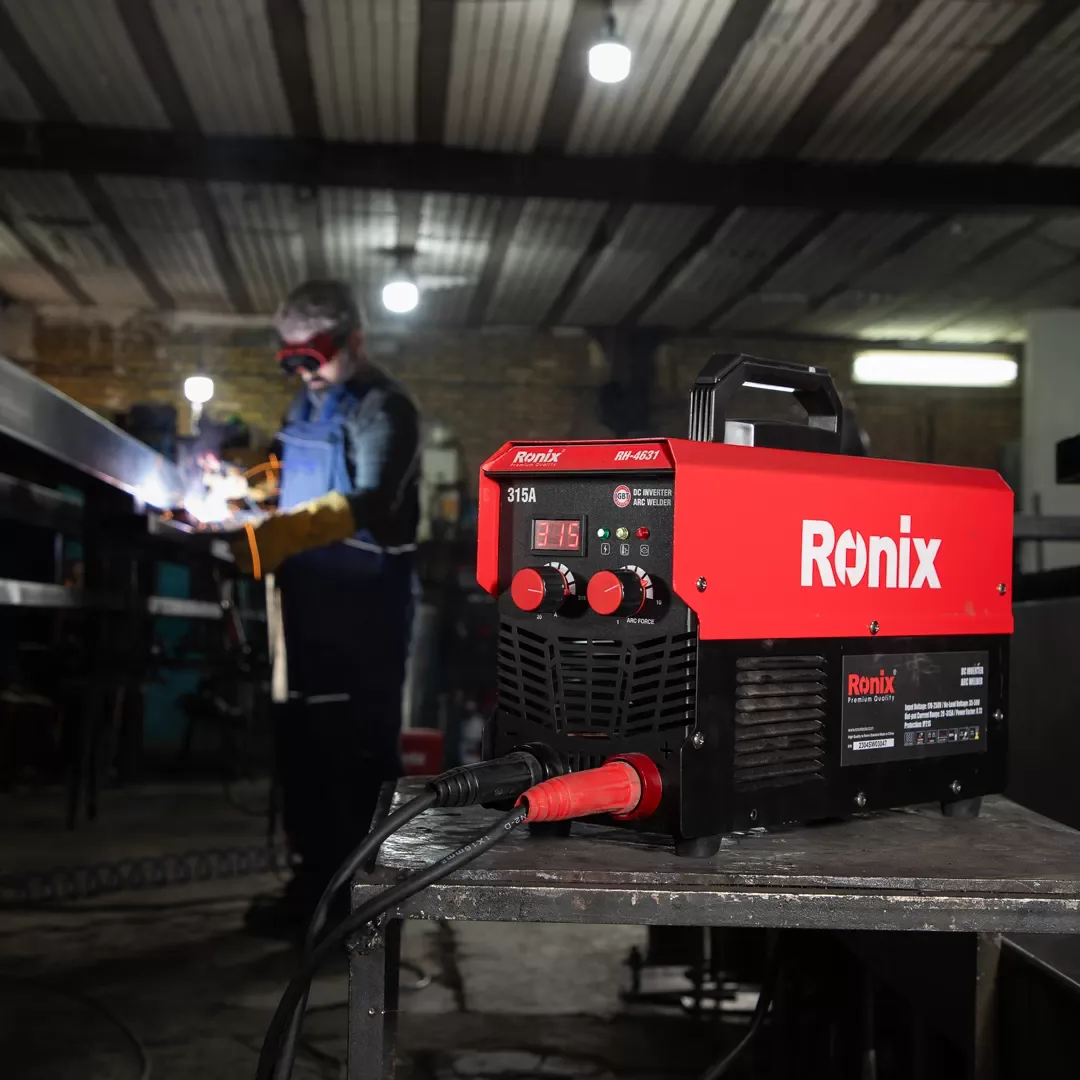

DC ARC Welding Inverter 315A

SKU: RH-4631 Brand: Ronix Category: Welding Machine

Ronix RH-4631 is a 315A DC arc welding inverter used to convert AC power to DC power so you can convert the incoming electrical power to a lower voltage suitable for welding.

Using the inverter technology, Ronix offers the RH-4631 welding inverter for a more compact and efficient device. The device uses high-frequency inverters to switch between AC and DC rapidly. This way, you’ll have a smoother welding arc and as a result, better control over the whole welding process. It allows you to work best with different types of metals with varied thicknesses.
The Ronix RH-4631 welding inverter is also portable and rather lightweight so you can take it to different job sites.

Specifications — DC ARC Welding Inverter 315A
Model RH-4631
Input voltage 170V-250V
No-Load voltage 65-75V
Out-put Current Range 20-315A
Rated Out-put Voltage 20.8-30V
Max Input Power Capacity 12KVA
Max Input Current 55A
Power Factor 0.73
Duty-cycle (25°C) 100%
Insulation Class F
Protection Class IP21S
Electrode Diameter 1.6-5.0mm
Supplied in honey-con box
Accessories "3*25MM CCA cable with 300A holder 1pc, 2*25MM CCA cable with 300A earth clamp 1pc, mask 1pc, brush 1pc Strap 1pc"
